HP4
Wire-free Peephole Doorbell and smart camera

Specifications
| Specifications | |
|---|---|
| Model | CS-HP4 |
| Installation Parameters | |
| Supportive Hole Diameter | 15.5 to 50 mm |
| Supportive Door Diameter | 35 to 105 mm (1.38 to 4.13 inch) |
| Camera Parameters | |
| Sensor | 1/3" Progressive Scan CMOS |
| Lens | 2.0 mm @ F2.2, visual angle (diagonal):155° |
| Day/Night Switch | ICR infrared filter |
| IR Distance | Max. 3 m |
| Max. Resolution | 1080p / 2MP |
| Video Frame Rate | 15fps |
| Interface | |
| Storage Interface | MicroSD card slot (max. 512 GB) |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Buttons | Doorbell button, power button, Screen wake up button |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Intercom | Local and remote video intercom |
| General Function | Cloud video encryption and image encryption |
| Wireless | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General | |
| Screen | 4.3-inch color screen |
| Color | Black |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less |
| Power Supply | DC5V±10% |
| Power Consumption | Max. 2.2W |

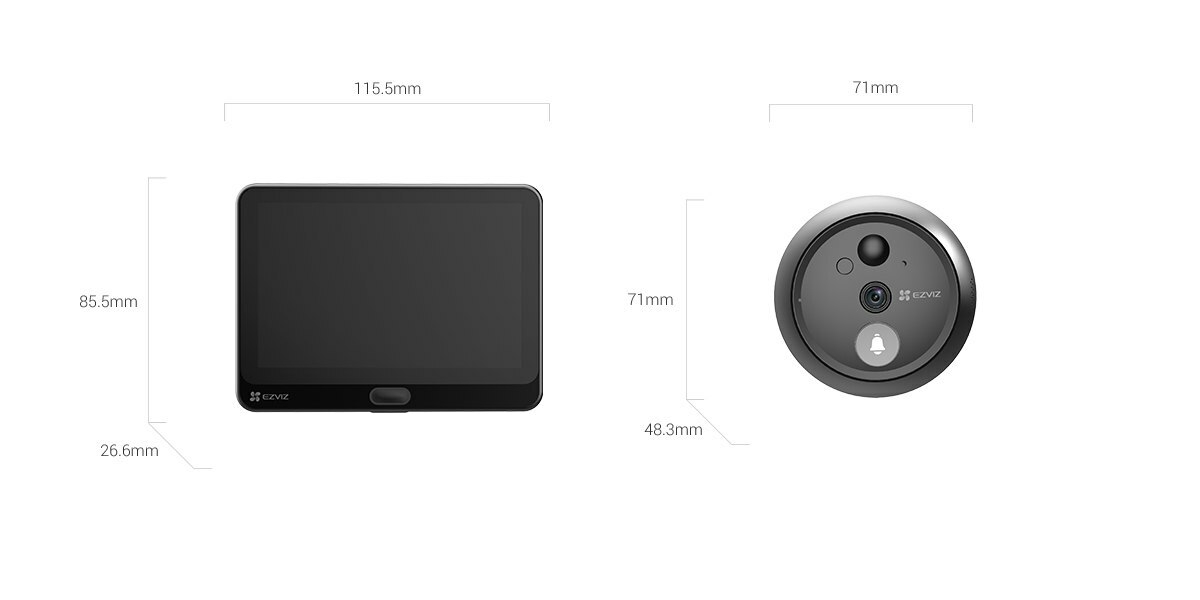

| Dimension | Screen and Base: 115.5 × 85.5 × 24.5 mm (4.55 × 3.37 × 0.96 inch) |
| Peephole Doorbell: 71 × 71 × 48.3 mm (2.80 × 2.80 × 1.90 inch) | |
| Weight | 302 g (10.65 oz) |
| In the box | |
| In the box | - HP4 Peephole Doorbell |
| - Panel | |
| - Mounting Base | |
| - Power Cable (1 m / 3.3 ft) | |
| - Screws × 6 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | UL / CE / WEEE / REACH / RoHS |

Front door security made simple and visible
Protect your front door in an easy way with the EZVIZ HP4. You can control it remotely via EZVIZ App, and even better, you may simply see who's at your doorstep before answering it using the indoor monitor. The HP4 keeps you connected and informed, adding an extra layer of security to your family.

1080p Resolution

155° Ultra-wide-angle View

Live View & Two-way Video Call

4.3-inch Color Screen

Night Vision Up to 3m (10ft)

Built-in Electronic Doorbell

4600mAh Rechargeable Lithium Battery¹

H.265 Video Technology

Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage²
Never miss a visitor
Once the doorbell button is activated by the visitor, the built-in chime rings out to remind people inside. In the meanwhile, you will receive a prompt video call via EZVIZ App.

Hi, you have a delivery.
Provides peace of mind 24/7
Equipped with a 155-degree lens, the HP4 delivers wide field-of-view for apartment dwellers. It is also smart enough to automatically shift between day and night modes.


| General | |
| Screen | 4.3-inch color screen |
| Color | Black |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less |
| Power Supply | DC5V±10% |
| Power Consumption | Max. 2.2W |
| Dimension | Screen and Base: 115.5 × 85.5 × 24.5 mm (4.55 × 3.37 × 0.96 inch) |
| Peephole Doorbell: 71 × 71 × 48.3 mm (2.80 × 2.80 × 1.90 inch) | |
| Weight | 302 g (10.65 oz) |
